应用领域

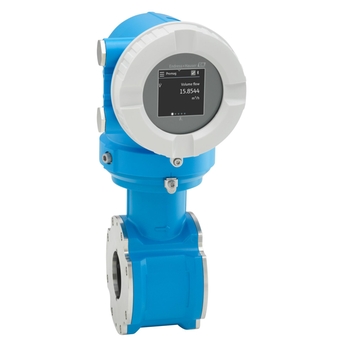

Promag D电磁流量计采用夹持式安装方式，适用于安装在空间狭小的水行业基本应用场合中使用。Promag D 10的软硬件设计均直观明了，在保证Endress+Hauser高品质的前提下， 大大简化了仪表从设计到服务全生命周期内的每一步操作。Heartbeat Technology心跳技术保证了测量的可靠性和校验的合规性。

双向流量测量，完全不受压力、密度、温度和粘度的影响。

适用于水行业的标准应用场合，可以安装在狭小空间中和塑料管道上使用。

仪表特点

短安装长度要求，轻质量

自带不锈钢接地环

通过国际饮用水认证

支持HART或Modbus RS485系统集成

安装app，选配显示单元，操作灵活

优势

传感器简单对中安装：创新的外壳结构设计

节能流量测量：无节流部件，无压损

免维护：无可移动部件

最优操控性：使用移动终端设备，安装SmartBlue app，直接触摸屏操作

调试简单高效：引导式仪表组态预设置和现场设置

带自校验功能：采用Heartbeat Technology心跳技术

产品规格参数

测量原理

电磁

产品标题

Highly cost-effective wafer flowmeter with easy-to-use operation concept.

For basic water applications, optimized for limited space and plastic pipe installations.

传感器特点

Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.

Short face-to-face length and low weight. Integrated ground disks made of stainless steel. International drinking water approvals.

变送器特点

Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.

2-line display with push buttons. Device as compact or remote version. HART.

公称口径范围

DN 25 to 100 (1 to 4")

接液部件材质

Liner material polyamide: 0 to +60°C (+32 to +140°F)

Electrodes: 1.4435 (316L)

测量变量

Volume flow, mass flow

最大测量误差

Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

测量范围

9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)

最大过程压力

PN 16, Class 150, 10K

介质温度范围

Liner material polyamide: 0 to +60°C (+32 to +140°F)

环境温度范围

-40 to 60°C (-40 to 140°F)

传感器外壳材质

DN 25 to 100 (1 to 12"): AlSi10Mg, coated

变送器外壳材质

Polycarbonat; AlSi10Mg, coated

防护等级

Compact version: IP66/67, type 4X enclosure

Sensor remote version (standard): IP66/67, type 4X enclosure

显示/操作

LCD display with touch & auto rotate

输出

4-20 mA HART (active/passive), Pulse/frequency/switch output

Modbus RS485, 4-20 mA

数字通信

HART, MODBUS RS485

电源

DC 24 V

AC 100 to 230 V

AC 100 to 230 V / DC 24 V (non-hazardous area)

防爆认证

CSA, GP

产品安全性

产品安全性

计量认证和证书

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

卫生型认证和证书

卫生型认证和证书
