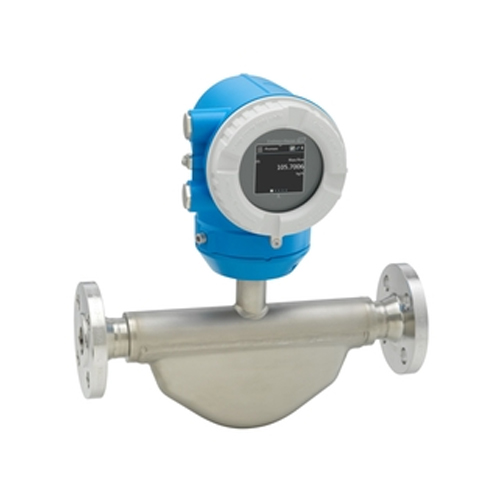

【E+H】Proline Promass K 10 科里奥利质量流量计

产品描述:基本应用场合的流量测量解决方案,低使用成本,操作简单应用领域Promass K科里奥利质量流量计传感器是高性价比的质量流量测量解决方案。可靠测量基本应用场合中的空气、气体、燃油和水的流量。Promass K 10的软硬件设计均直观明了,在保证Endress+Hauser高品质的前提下, 大大简化了仪表从设计到服务全生命周期内的每一步操...
产品详情

基本应用场合的流量测量解决方案,低使用成本,操作简单


应用领域

Promass K科里奥利质量流量计传感器是高性价比的质量流量测量解决方案。可靠测量基本应用场合中的空气、气体、燃油和水的流量。Promass K 10的软硬件设计均直观明了,在保证Endress+Hauser高品质的前提下, 大大简化了仪表从设计到服务全生命周期内的每一步操作。Heartbeat Technology心跳技术保证测量的可靠性,延长了仪表校准周期。

仪表特点


优势


产品规格参数

测量原理:

科里奥利质量流量


产品标题:

Flowmeter with minimized total cost of ownership with easy-to-use operation concept.

Measurement of liquids and gases in utility processes and basic applications.


传感器特点:

Cost-effective general-purpose device – alternative to mechanical flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in-/outlet run needs.

Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).


变送器特点:

Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.

System integration with HART, Modbus RS485, IO-Link. Flexible operation with app and optional display.


公称口径范围:

DN 8 to 80 (⅜ to 3")


接液部件材质:

Measuring tube: 1.4539 (904L)

Connection: 1.4404 (316/316L)


测量变量:

Mass flow, temperature, Density (option), volume flow, corrected volume flow


最大测量误差:

Mass flow (liquid): ±0.5 % (standard), ±0.15 % (option)

Mass flow (gas): ±0.75%


测量范围:

0 to 180 000 kg/h (0 to 6615 lb/min)


最大过程压力:

PN 40, Class 300, 40K


介质温度范围:

–40 to +150 °C (–40 to +302 °F)


环境温度范围:

Standard: –20 to +60 °C (–4 to +140 °F)


传感器外壳材质:

Stainless steel 1.4301 (304)


变送器外壳材质:

AlSi10Mg, coated


防护等级:

Standard: IP66/67, Type 4X enclosure


显示/操作:

2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible


输出:

4-20 mA HART (active/passive), Pulse/frequency/switch output

Modbus RS485, 4-20 mA


数字通信:

HART, MODBUS RS485, IO-Link


电源:

DC 24 V

AC 100 to 230 V

AC 100 to 230 V / DC 24 V (non-hazardous area)


防爆认证:

ATEX

IECEx

cCSAus

EAC

NEPSI

INMETRO

IND Ex

JPN

UK Ex

KC


计量认证和证书:

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)


压力认证和证书:

CRN, PED


材料证书:

3.1 material


卫生型认证和证书:

EC 1935, FDA, GB4806, cGMP, 3-A
